PRECISIO-6

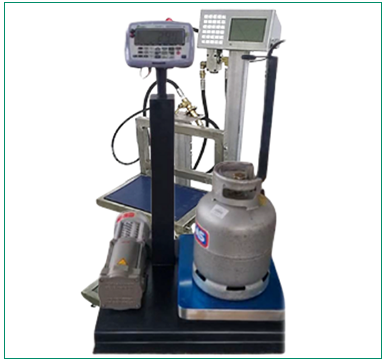

PRECISIO 6 - INDUSTRIAL Fully Electric with Auto Switch-off Pump

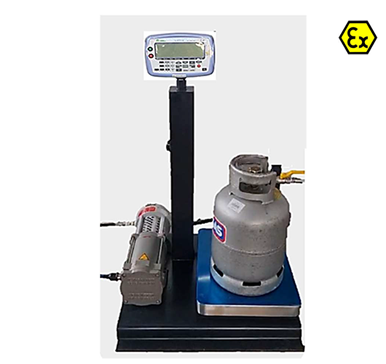

PRECISIO 6 - INDUSTRIAL Applicable using 48kg DV bottles supply with AUTO SWITCH-OFF circuit
Two pump options: SMITH model GE-110F / CORKEN model C10
Specifications:
• Ex approved - for transferring from 9kg up to 48kg via electronic LPG fillingbr>
• Designed with electronic valvebr>
• Self contained, complete with hoses & Filling ADAPTORSbr>
• Platform dimensions: 40cm x 50cmbr>
• Power: 220VAC
Scale specifications:
• Weighing Units: kg
• Operating Temperature: 0°C to 40°C
• Display: Extra-large 40mm high, 6 digits LCD (Seven Segments) with LED display
• Known numeric key manual tare entry
SMITH model GE-110F pump specifications:
• Design: 2-Gear
• Connection: In/Out 3/4" F.NPT / Bypass return ½” F.NPT
• By-Pass: Cartridge pre-set 110psid **
• Strainer Screen: Built-in
• Capacity: 30 litres/min @ 20psid and 25 litres/min @ 75psid
• Motor: 1.1kw (1.5HP) Single Phase 220VAC 50Hz
• Flame-proof Exd IIBT4 IP55
• Speed 3000 rpm. Foot mount. Cable entry M20 F
• ** Bypass comes pre-set for external bypass L
TCORKEN model C10 pump specifications:
• Inlet 1-1/4" NPT
• Outlet 1" NPT
• RPM—50 Hz 2,880
• RPM—60 Hz 3,450
Max differential pressure:
• 2880 RPM @ 50 Hz, psi (bar) 60 (4.1)
• 3450 RPM @ 60 Hz, psi (bar) 70 (4.8)
Mounting options:
• Close coupled Yes
• Direct driven (101) Yes
• V-belt (103) Yes
• Direct mounted frame (DL) Yes
• Impeller material Bronze (std)
• O-ring material PTFE, Viton®1
• Seal seat material Silicon carbide
• Minimum/maximum temp (°C) -32/107
• Maximum driver hp (kW) 5 (3.7)
Optional:
• Pressure gauge, Hydraulic relief & Vent valves
• By-pass valve
• Pit-mount frame (available on request)
|
|
|
|
